XY

Usage and functions:

  • The material is high rigidity aluminum alloy.
  • Precision ball screw provide smooth and accurate movement.
  • The operating range would be set up.
  • Excellent of dust proofing to protect.
  • You can choose the XY Table according to speed, load & length etc.
Description
Reviews (0)



Model Specification
Range Max/mm Weight
(kg)
Motor Model Ratio Load Speed mm/sec
Max/kg
T200 200 18.5 DC
90Vdc
120W
3200RPM
1/30 140 10.0
T300 300 21 1/40 160 8.0
T500 500 26.5 1/50 180 6.2
1/60 200 5.3

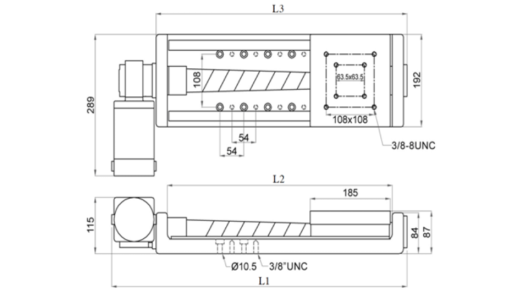

Model L1 L2 L3
T200 565 407 465
T300 665 507 565
T500 865 717 775
