DC Motor

Categories: DC Motors, Xajong Drives & Motors

Description

Reviews (0)

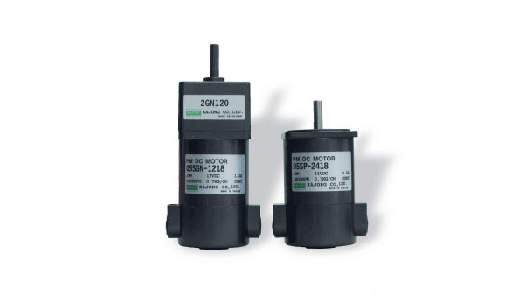

05 SP/SGN General Specification of Direct Current Motor

Type	General Specification
	VOLTAGE (vdc)	AMPS (A)	SPEED (RPM)	OUTPUT (W)	TORQUE (kg-cm)	RATING (min)	WEIGHT (kg)
05	12	1.2	1800	10	0.7	CONT	0.8
	24	0.6
	90	0.17
	12	2.4	3200	20	0.75	30 min	0.8
	24	1.2
	90	0.34

10 SP/SWG/SGN General Specification of Direct Current Motor

Type	General Specification
	VOLTAGE (vdc)	AMPS (A)	SPEED (RPM)	OUTPUT (W)	TORQUE (kg-cm)	RATING (min)	WEIGHT (kg)
10	12	9	1800	65	3.5	CONT	2.2
	24	4.5
	90	1.2
	180	0.6
	12	14	3200	120	3.66	30 min	2.3
	24	6.8
	90	1.8
	180	0.9

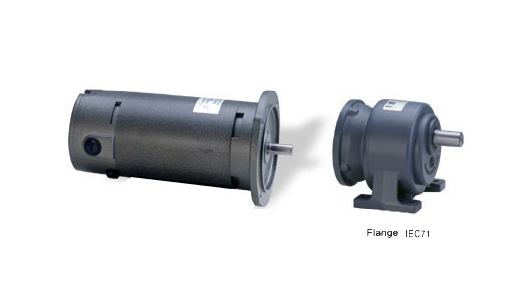

M31 RWG General Specification of Direct Current Motor

Type	General Specification
	VOLTAGE (vdc)	AMPS (A)	SPEED (RPM)	OUTPUT (W)	TORQUE (kg-cm)	RATING (min)	WEIGHT (kg)
M31	90	3.2	1800	200	16.2	CONT	8.3
	180	1.6
	90	6.4	3600	400	16.2	30 min	8.4
	180	3.2
