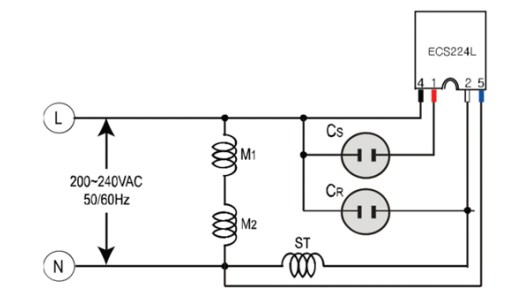

Samusco ECS224L

Electronic centrifugal switches for single phase induction motors

Category:
Description
Reviews (0)

Line voltage 200~240 VAC
Non repetitive peak current @ half cycle, 50/60Hz 240 A
Thermal impedance @ 8.0 sec 0.8 °C/W
Initial switch-on delay time 2.0 Cycle
* Discharge resistance 10.0 KΩ
** Forced switch-off locked rotor time, 60Hz (50Hz) 7.0 (8.4) sec
** Maximum Number of successive restarts 9 –
Forced switch-off starting coil voltage 320~350 VAC
Dielectric strength, between case and pins 2500+ VDC
Insulation resistance, between case and pins 10+ MΩ
Ambient air temperature -20~60 °C
